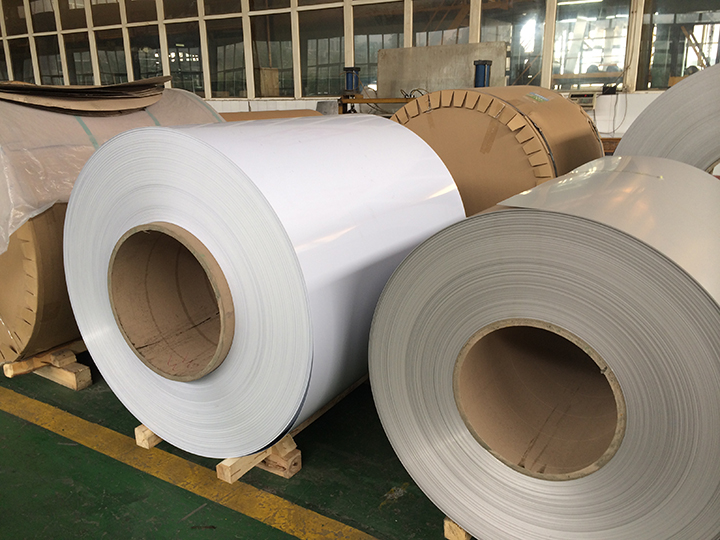

1060 Coated Aluminum Coil
1060 Aluminum Coating Coil Alloy:1060 Temper:HO,H12,H14,H16,H18,H22,H24,H26 Thickness:0.2mm-6.0mm

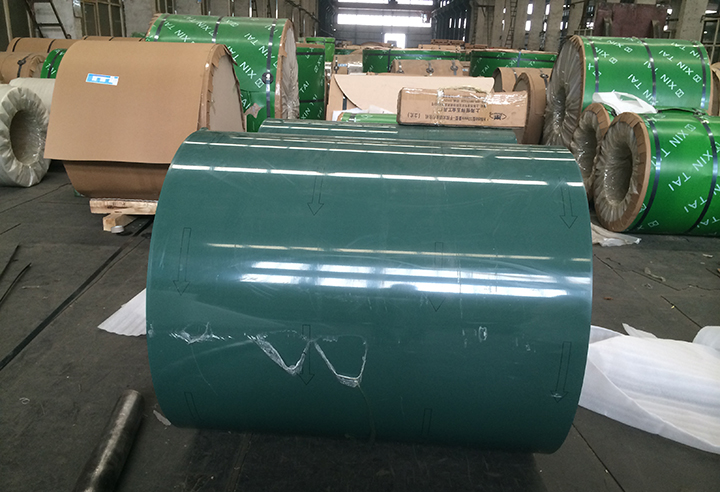

1060 color coated aluminum coil sheet is low strength and pure aluminium, has good deep drawing quality, therefore it is widely used for making cap, closure, can, cosmetic cover etc.
1060 aluminum coated coil sheet is good for anodizing and bright surface, so it is ideal aluminium to make mirror sheet, color coated mirror sheet coil.
Alloy:1060
Temper:HO,H12,H14,H16,H18,H22,H24,H26
Thickness:0.2mm-6.0mm
Width:80mm-2300mm
Standard production:ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
MOQ:5 tons per size
Mother coil:DC or CC
ID:76mm,152mm,408mm,508mm
Surface:Color Coated, Many kinds of Color
Package:Export standard package with wooden pallet
Package way:Eye to sky or eye to wall
Delivery time:within 30days
Origin:Zhengzhou,China
Certificate: Mill Test Certificate,Certificate of origin:Form A,Form E,CO
Payment: T/T
Chemical Properties – EN AW-1060 Color Coated Aluminium Coil Strip
| Alloy Designation | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Remarks | Others | Aluminium min |
||
| Numerical | Chemical Sympols | Each | Total | |||||||||||||
| EN AW -1060 |
EN AW- AI 99.6 |
0.24 | 0.35 | 0.05 | 0.03 | 0.03 | – | – | 0.05 | 0.03 | – | 0.05 | – | 0.03 | – | 99.60 |
Mechanical Properties – EN AW-1060 Color Coated Aluminium Coil Strip
| Alloy | Supplier Temper |
Testing Temper |
Thickness (mm) |
Tensile Strength Rm/Mpa |
Extension Strength Rp0.2/MPa |
Elongation after Break | Bending Radius | ||
| A50mm | A5.55e | ||||||||
| Not less than | |||||||||
| O | O | > 0.2 – 0.30 | 60 – 100 | 15 | 15 | – | – | ||
| > 0.3 – 0.50 | 18 | – | – | ||||||
| > 0.5 – 1.50 | 23 | – | – | ||||||
| > 1.5 – 6.0 | 25 | – | – | ||||||
| > 6.0 – 80.0 | 25 | 22 | – | ||||||
| H12 | H12 | > 0.5 – 1.50 | 80 – 120 | 60 | 6 | – | – | ||
| H22 | H22 | > 1.5 – 6.0 | 12 | – | – | ||||
| H14 H24 |
H14 H24 |
> 0.2 – 0.3 | 95 – 135 | 70 | 1 | – | – | ||
| > 0.3 – 0.5 | 2 | – | – | ||||||
| > 0.5 – 0.8 | 2 | – | – | ||||||
| > 0.8 – 1.5 | 4 | – | – | ||||||
| > 1.5 – 3.0 | 6 | – | – | ||||||
| > 3.0 – 6.0 | 10 | – | – | ||||||
| H16 H26 |
H16 H26 |
> 0.2 – 0.3 | 110 – 155 | 75 | 1 | – | – | ||
| > 0.3 – 0.5 | 2 | – | – | ||||||
| > 0.5 – 0.8 | 2 | – | – | ||||||
| > 0.8 – 1.5 | 3 | – | – | ||||||
| > 1.5 – 4.0 | 5 | – | – | ||||||
| H18 | H18 | > 0.2 – 0.3 | 125 | 85 | 1 | – | – | ||
| > 0.3 – 0.5 | 2 | – | – | ||||||
| > 0.5 – 1.5 | 3 | – | – | ||||||
| > 1.5 – 3.0 | 4 | – | – | ||||||
| H112 | H112 | > 4.5 – 6.0 | 75 | – | 10 | – | – | ||
| > 6.0 – 12.5 | 75 | 10 | – | – | |||||
| > 12.5 – 40.0 | 70 | – | 18 | – | |||||
| > 40.0 – 80.0 | 60 | – | 22 | – | |||||
| F | – | > 2.5 – 150 | – | – | |||||
| TOLERANCE | |||||
| Major Brand | A1060(O) | ||||
| Thickness | 0.2-0.4 | 0.4-0.8 | 0.9-1.1 | 1.2-1.6 | 1.8-2.0 |
| tolerance | ±0.01 | ±0.015 | ±0.02 | ±0.025 | ±0.03 |
| Width | <100 | 100-200 | 201-500 | 501-1250 | >1250 |
| tolerance | ±0.1 | ±0.2 | ±0.2 | ±1 | ±2 |
| BURR AND COLLAPSE | |||||
| The width of aluminum belt | burr’s height | collapsed side’s height | |||
| <0.2 | 0.01 | ≥0.05-0.1 | |||
| 0.2-1.0 | 0.015 | ||||
| 1.1-1.5 | 0.02 | ||||
| >1.6 | 0.03 | ||||
| MECHANICAL PROPERTY | |||||
| U.T.S: 60-95N/mm2 | Elongation: >25% | ||||
| Density in 20°C :2.703kg/dm3 | Max.resistance in 20°C:≤0.02825Ωmm2/m | ||||
Application – EN AW-1060 Color Coated Aluminium Coil Strip
Here are some other common applications:
Exterior applications: Wall cladding, facades, roofs and canopies, tunnels, column covers or renovations.
Interior applications: Wall cladding (lamination), ceilings, bathrooms, kitchens and balconies.
Advertisement and Market applications: Display platforms, signboards, fascias and shop fronts.
Transport and Industry applications
